DSLR CAMERA
SOLIDWORKS | 3D CAD | ASSEMBLY DRAWINGS | EBOM

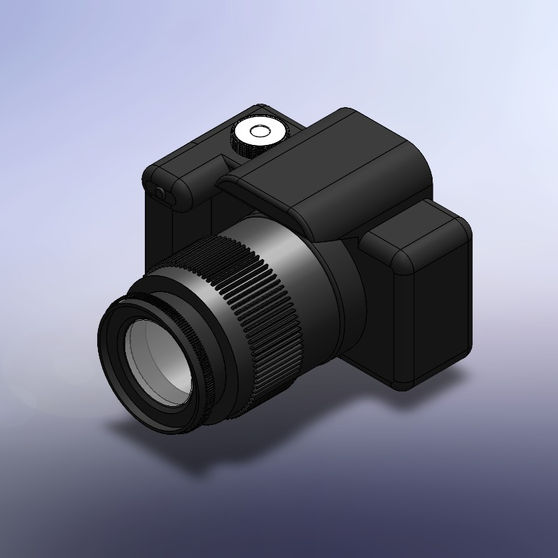

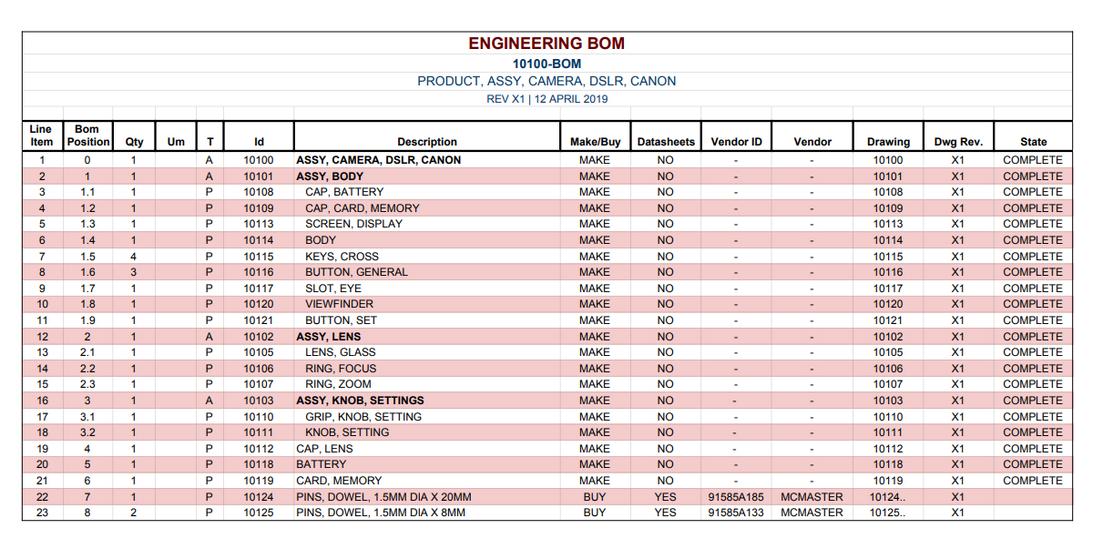

This project was created in Gillian's first year of the Mechanical Engineering Technology Diploma. Gillian measured each component of her DSLR camera using a digital caliper and then used those values to create a CAD model. The CAD model, drawings, and Engineering Bill of Materials (EBOM) were all created using Solidworks.
